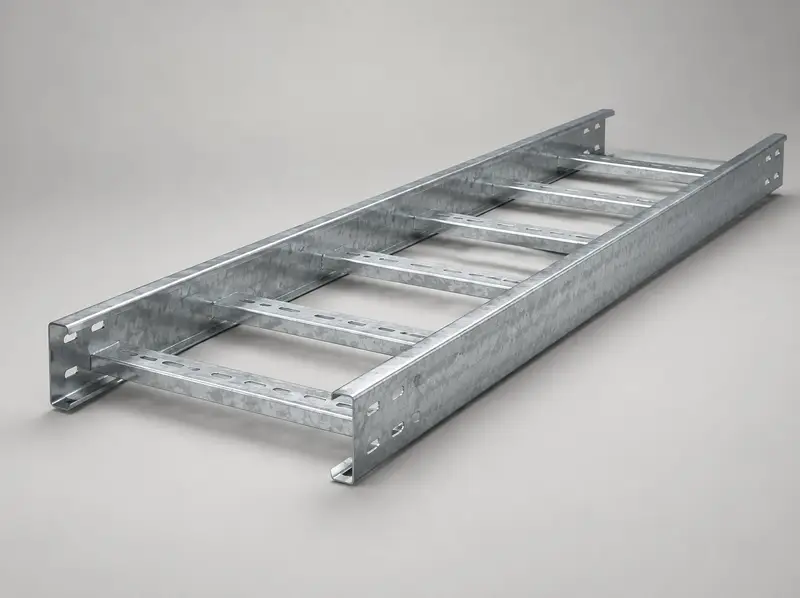

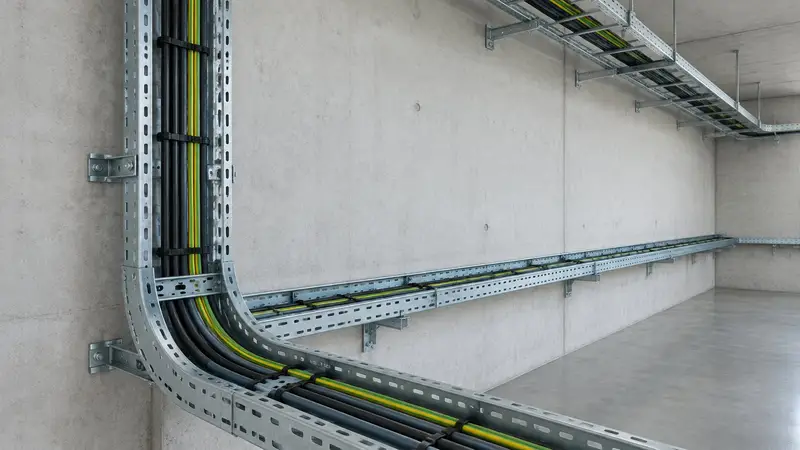

Ladder
Side rails joined by rungs, for heavy power runs and long spans.
Proqyur Cable Tray SystemsEvery cable.
Every cable.
In its place.
Ladder. Perforated. Raceway. Wire mesh. Straight lengths and matching fittings, made to your drawings and BOQ, from one riser to an entire data hall.
Approved by top data centres in IndiaThe range
Four ways to route.

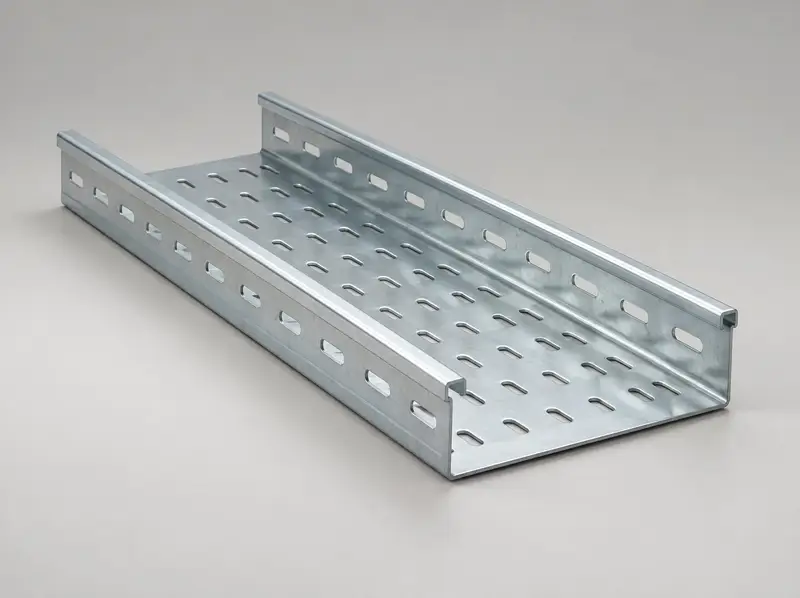

Perforated
Slotted base for ventilation and easy cable tie-down.

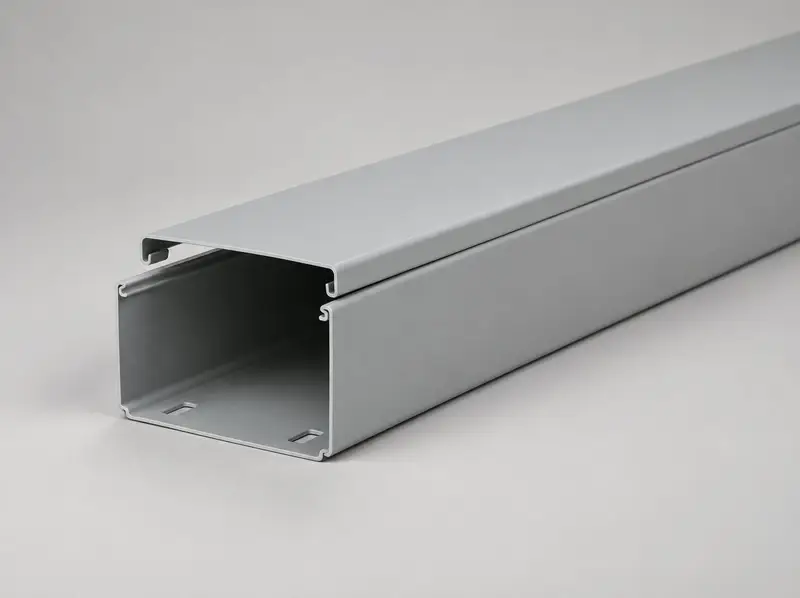

Raceway
Enclosed trunking with a cover that keeps dust and liquids out.

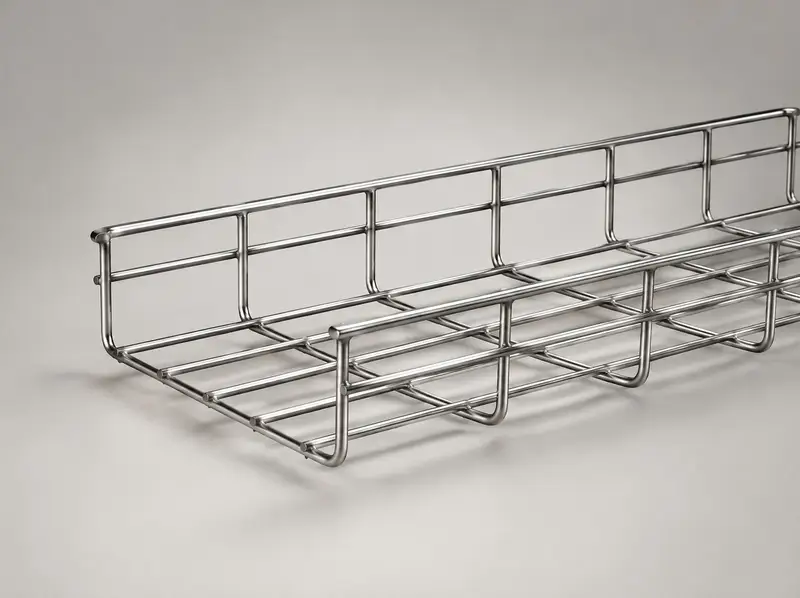

Wire mesh
Open welded grid, light and airy, for fibre and data cabling.
Stainless steel · Mild steel · Aluminium
1.6 to 3 mm sheet, matched to tray width and load.
Hot-dip galvanized · Pre-galvanized · Powder coated
Stainless and aluminium self-finish. Fire-retardant coating on request.
Beyond the tray
The whole system.
Covers, ducts, corrosion-proof trays and the supports that hold it all up, on one order.

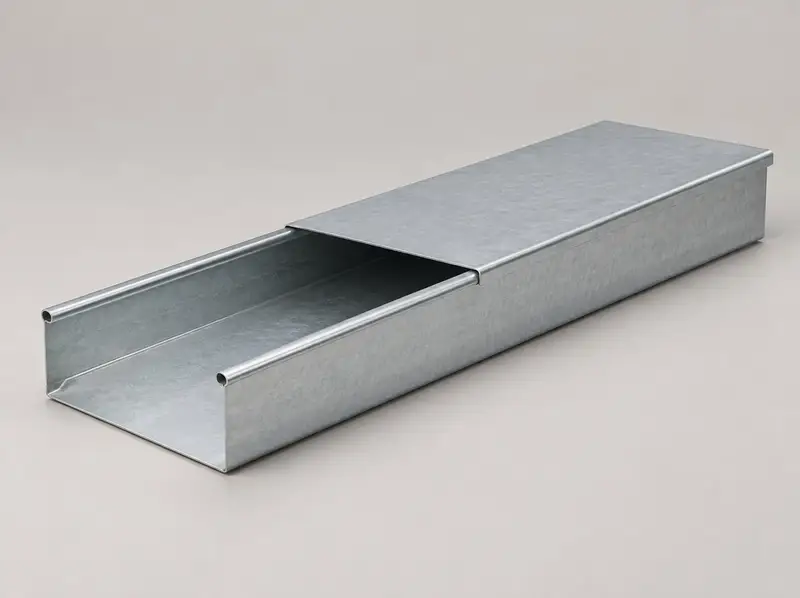

Solid bottom
Closed trough that shields control and instrument cables.

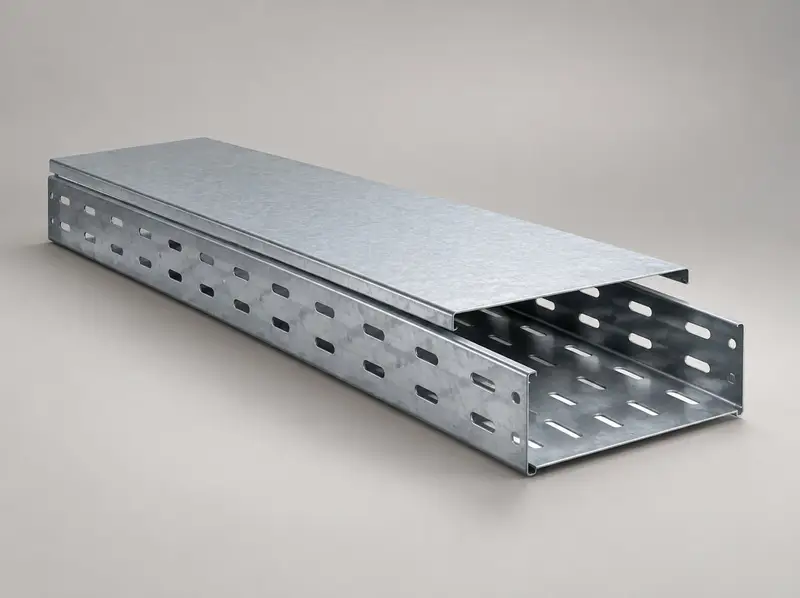

Tray covers
For ladder and perforated runs, against dust and debris.

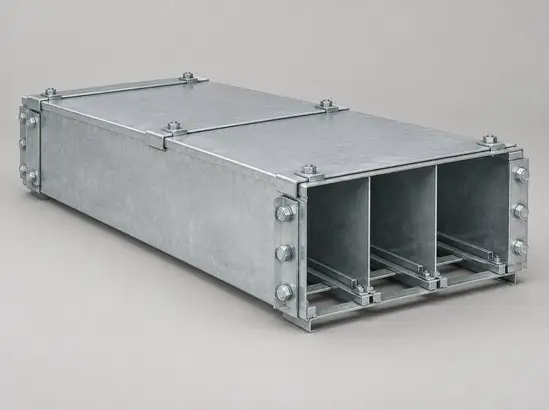

Cable ducts
Heavy-duty, compartmented trunking with clamped covers.

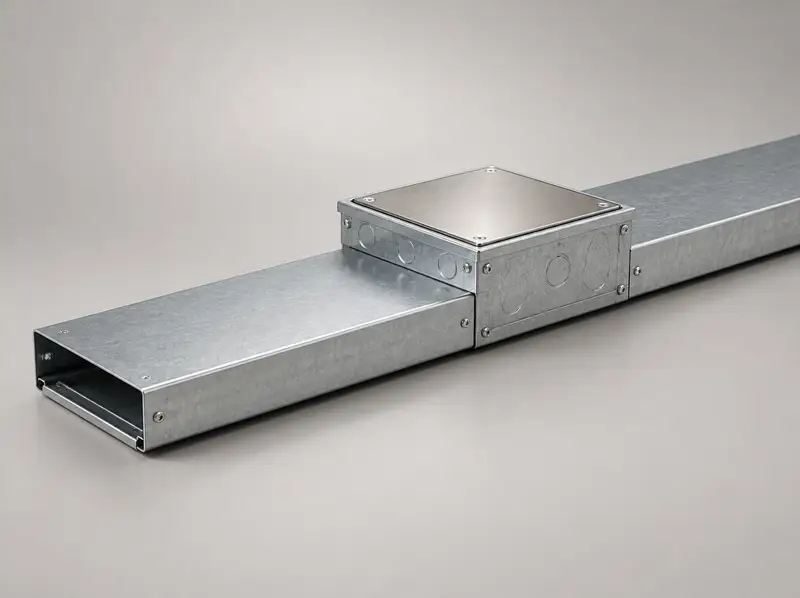

Under-floor raceway
Runs beneath raised floors, with junction boxes for outlets.

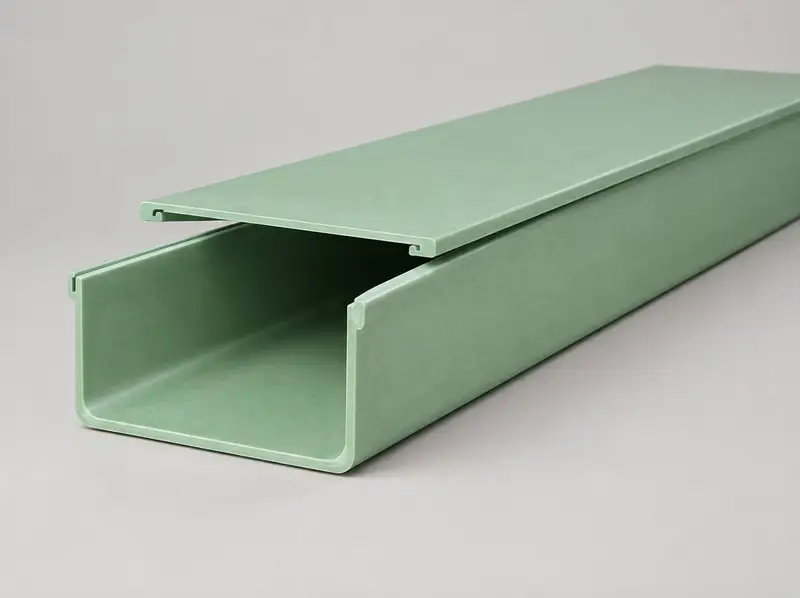

FRP trays
Fibreglass trays that won't rust, for chemical and coastal sites.

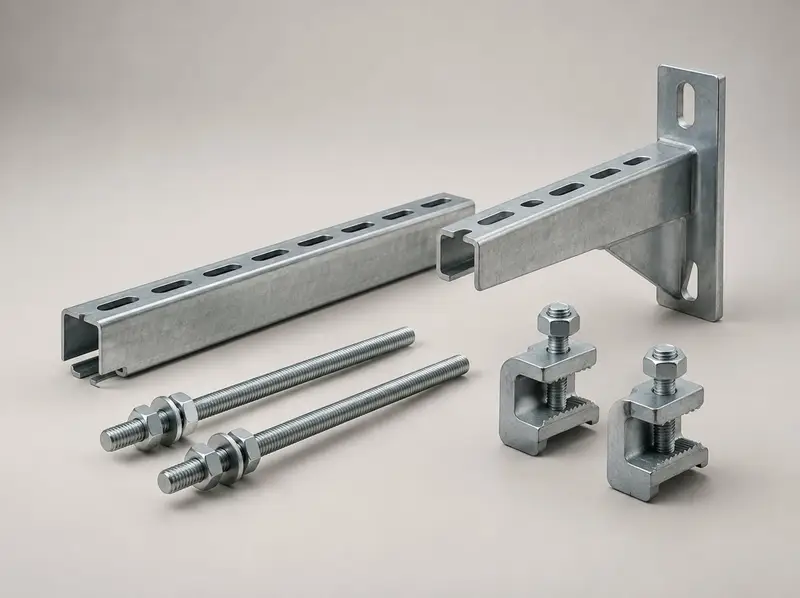

Supports
Brackets, C-channel, threaded rods and beam clamps.
6 m lengths, to cut site jointsSS 316 for coastal and chemical sitesFR fire-retardant coating
Built right, end to end
Tech specs.
- Types
- Ladder · perforated · raceway · wire mesh · solid bottom · FRP (fibreglass) trays
- Materials
- Mild steel · stainless steel (SS 304 / SS 316) · aluminium
- Finishes
- Hot-dip galvanized · pre-galvanized · powder coated · stainless and aluminium self-finish · fire-retardant coating on request
- Sheet thickness
- 1.6 mm to 3 mm, matched to tray width and load
- Width
- 50 mm to 1200 mm
- Side height
- 25 mm to 150 mm (raceway 25 mm to 100 mm)
- Standard length
- 2500 mm or 3000 mm; up to 6000 mm to order
- Ladder rungs
- 250 mm to 300 mm centres
- Galvanizing
- Hot-dip to IS 4759 / ASTM A123
- Cable ducts
- 400–1200 mm wide · 200–400 mm tall · 2.3 or 3.2 mm sheet · 2500 mm lengths · tees and bends
- Fittings
- Horizontal and vertical bends (inside and outside), tees, crosses, reducers, coupler plates and covers
- Supports
- Brackets, C-channel struts and threaded-rod hangers
- Supplied as
- Straight lengths with matching fittings, sized to your drawings and BOQ
- Documentation
- GST invoice and dispatch documents with every consignment; test certificates on request
Specifications vary by tray type and may change. Confirm against your quotation.
From BOQ to site
For projects of every size.
- Send the layout. Cable routing drawings, BOQ or a list of runs and fittings.
- Get a clear quote. Itemised by tray type, size and finish, within 24 hours.
- Lock the date. We commit to a delivery date when the PO is confirmed.
- Delivered, documented. With GST invoice and dispatch documents; test certificates on request.

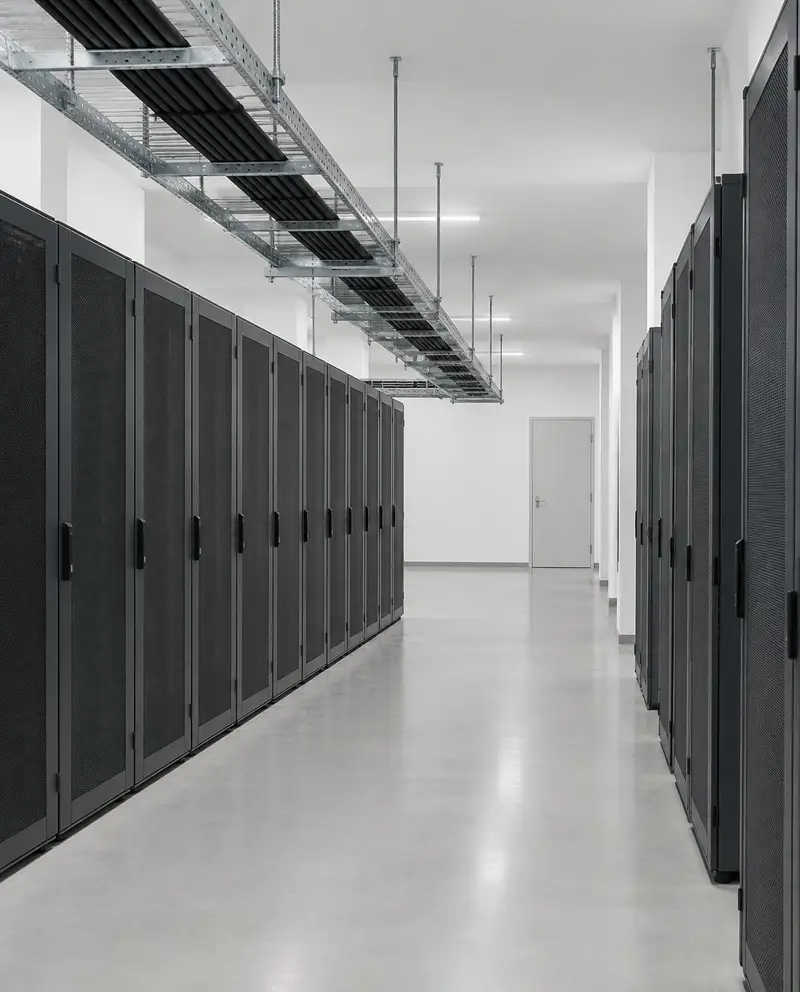

Built for data centres · power plants · industrial plants · commercial buildings · airports · telecom
Let's route your cables.
Send the layout or BOQ. Itemised quote within 24 hours.
